Easy Load

Low Profile 32-Ton, 8-Tire Trailer

STANDARD FEATURES

  • Construction: 130 KSI/100 KSI yield steel
  • Axles: 2 Axles at 20,000 lbs. each
  • Suspension: Air-Ride Suspension w/ dump valve & scaling guage
  • Capacity: 32 Tons
  • Wheels: 8-hole, hub piloted aluminum
  • Tires: 235/75R x 17.5 – Hankook or Continental

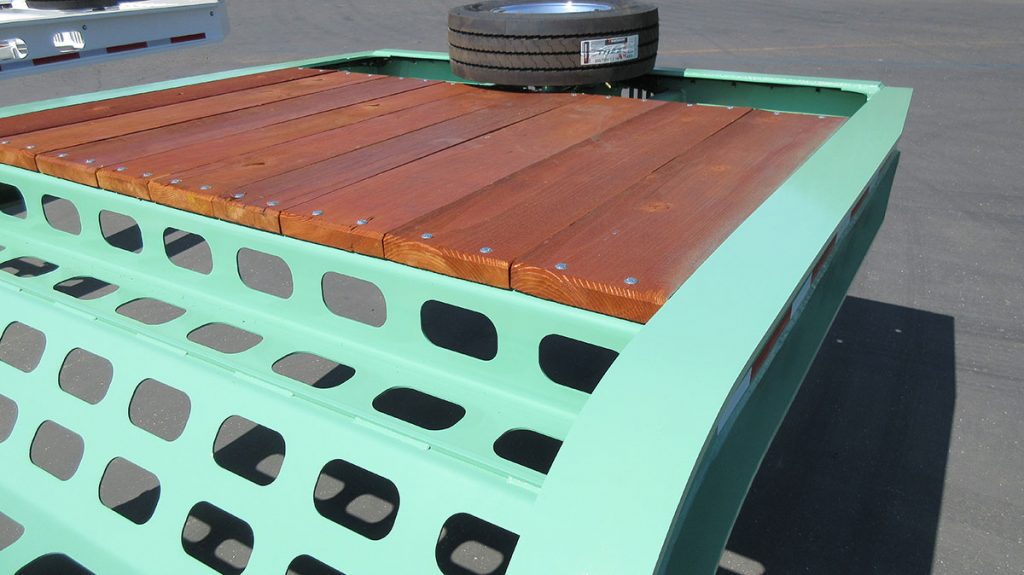

  • Decking: 3” Apitong outside, 2” Douglas Fir inside
  • Paint: DuPont IMRON ELITE
  • Goosenecks: Mechanical Removable wide neck with a single kingpin
  • Deck Height: 27” nominal center of deck (dependent on 5th wheel height)
  • Over-front loading: 10”
  • Over-rear loading: 34”
  • Overall Length: 43’-4” with standard 21’-6” deck, gooseneck, & tail
  • GVWR: 80,000 lbs.

* Capacity, Trailer Length, Deck length and King pin length subject to change depending on options selected.

OPTIONAL FEATURES

  • Deck Lengths 12’ to 24’
  • 16” Longer Goooseneck
  • Second kingpin
  • Air operated “RoboLink” & Deck Latch release (US PAT #8752854, 9272591)
  • Sliding Outriggers
  • Disc brakes with ABS
  • Full wheel covers
  • Fire District Code 3 Lighting
  • Lockable tool boxes in wide neck
  • Front & rear loading ramps
  • ”D” Rings
  • Outriggers
  • Chain boxes w/ optional lids
  • Excavator deck well or pan
  • Rear Diamond Ramp storage w/ air lock
  • Spare tire with lockable mount
  • Electric winch on gooseneck
Murray Trailer | Easy Load

GUARANTEED OVER-THE-BACK LOADING
